該流水線由穿梭小車、檢測臺、理片籠、自動立式上下片機(可選配)組成。對加工過程中的矩形玻璃進行尺寸檢測后分批次儲存于格柵籠，并按照系統排列次序依次取出玻璃，以此為下一道玻璃加工工序進行梳理和緩字功能;每一格柵格可儲存單片或多片玻璃，從而達到存儲空間的充分利用。

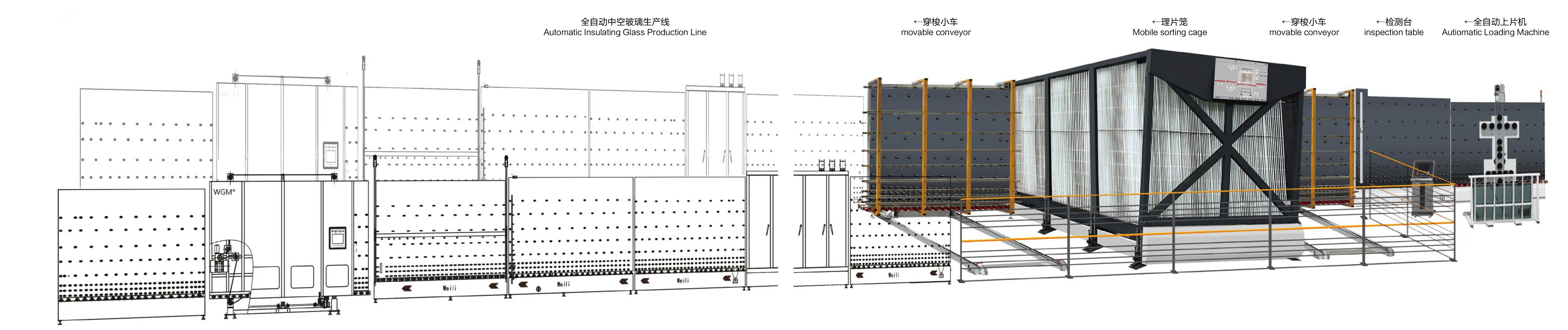

The assembly line is consists of movable conveyor，vertical inspection section, sorting cage and automatic vertical loading and unloading machine (optional). In the processing，first detect the rectangular glass size, store in the grating in batches, then the glass is taken out successively according to the systematic arrangement order, so as to comb and cache the next glass processing process; Each grating can store a single or multiple pieces of glass, so as to achieve the full utilization of storage space.
性能特點
（Main Feature）
1.用于中空線之前，生產效率可提高 25%-30%。
2.支持掃碼功能，省去檢驗臺環節，直接掃碼確定玻璃配對信息。
3.中空玻璃加工之前對玻璃進行梳理、緩存，并達到中空玻璃加工配對需求。
1.lt is used in front of insulating glass line, the production efficiency can be increased by 25%-30%.
2.Optional: support the code scanning function, save the inspection station steps，and directly scan the code to confirm the glass pairing information.
3.Comb and cache the glass before processing the insulating glass, so as to meet the glass sorting and matching requirements.
主要技術參數（Main Techniq ue Parameter） | ||||||||||
產品型號 Product model | 電壓 Power source | 最大尺寸 Max.Size | 配片節拍 Glass Matching Efficiency | 傳輸速度 Transmit Speed | 玻璃厚度 thickness | 傾斜角 Tilt angle | 穿梭小車速度 Movable Conveyor Speed | 籠數 Cage Qty | 設備尺寸 L×W×H Dimension mm | 功能段 Function section |
WLPL2030 | AC 380V 3ph 50HZ | 2000×3000mm | 3~4 片/min | ≤ 45m/min | 3~10mm | 88° | ≤ 200m/min | 60/Cage | 14000×6000×2620 | 6 |
WLPL2530 | AC 380V 3ph 50HZ | 2000×3000mm | 3~4 片/min | ≤ 45m/min | 3~10mm | 84° | ≤ 200m/min | 60/Cage | 14000×6000×2620 | 6 |
